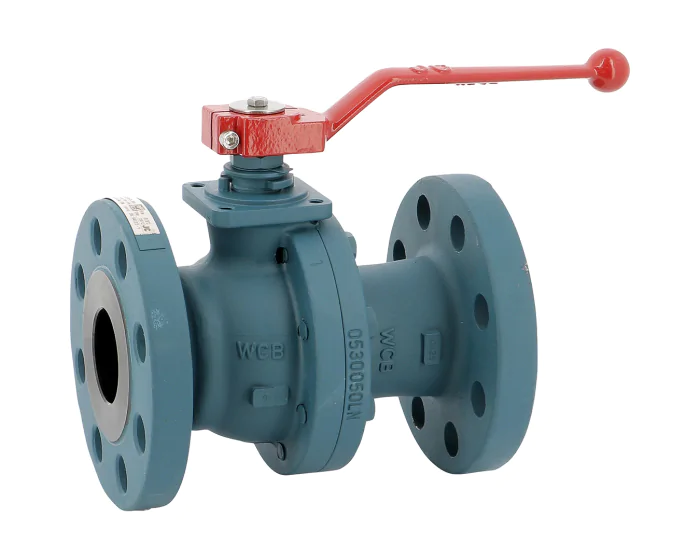

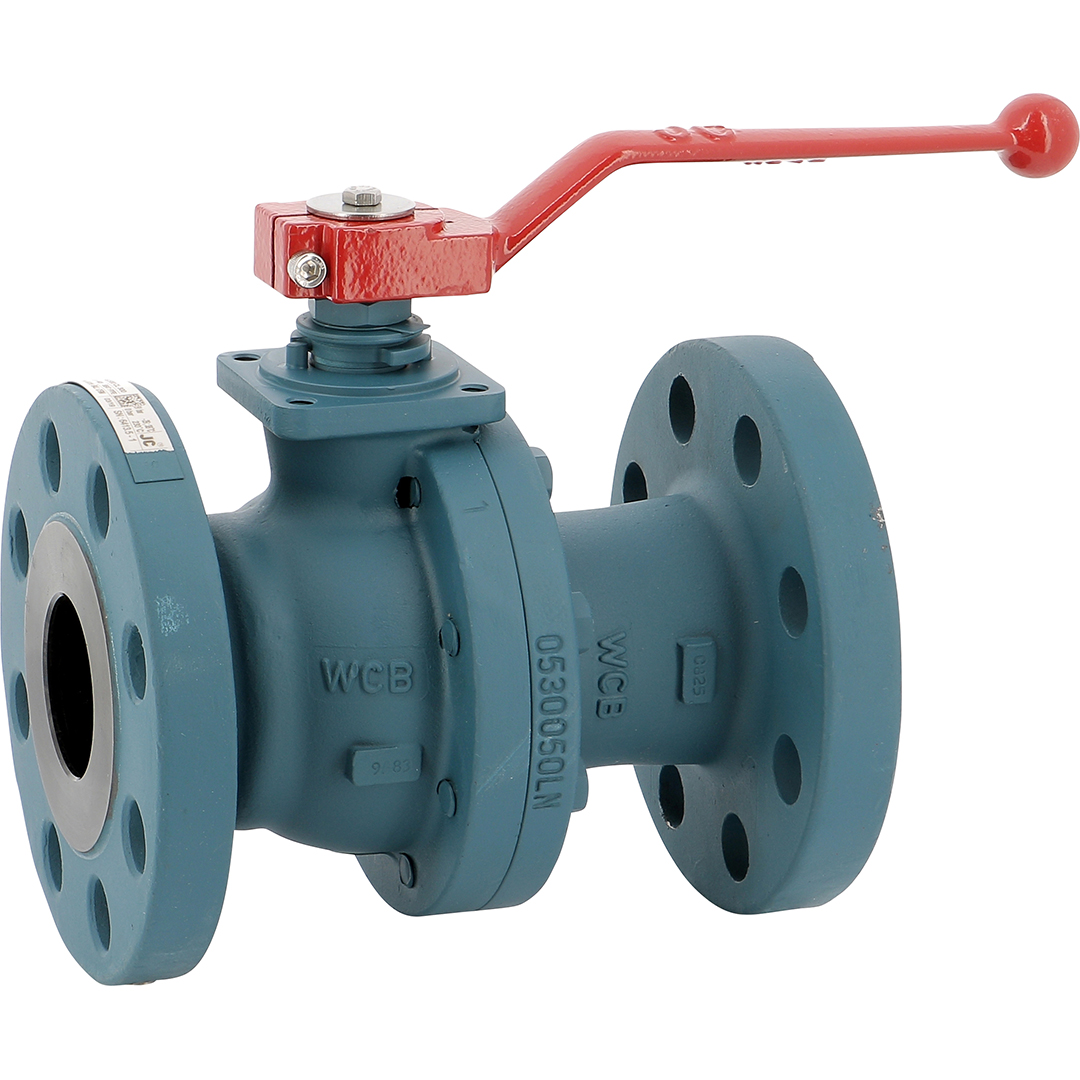

The 515AIT series ball valve, 2-piece body with flanges PN20 Class 150, steel body with PTFE seat, NACE, Split Body JC range, actuation, fire safety certified for chemical products, industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - ASME B16.34 - API 6D |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| Square, star (mm) | MEP M12x9 |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Main product colour | Blue |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 515AIT015 | S1006932 |
€120.86
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 515AIT020 | S1006933 |
€140.66
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 515AIT025 | S1006934 |
€165.66
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 515AIT040 | S1006935 |
€233.37
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 515AIT050 | S1006936 |
€299.01
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2 | 515AIT065 | S1006937 |
€521.97
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 515AIT080 | S1006938 |
€549.07
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 515AIT100 | S1006939 |
€861.61
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 515AIT150 | S1006940 |
€2,035.79
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8'' | 515AIT200 | S1006941 |
€3,829.87
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN250 - 10'' | 515AIT250 | S1006942 |
€6,857.31
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN300 - 12'' | 515AIT300 | S1006943 |
€12,104.49
(excl. btw)
|
add to cart |
